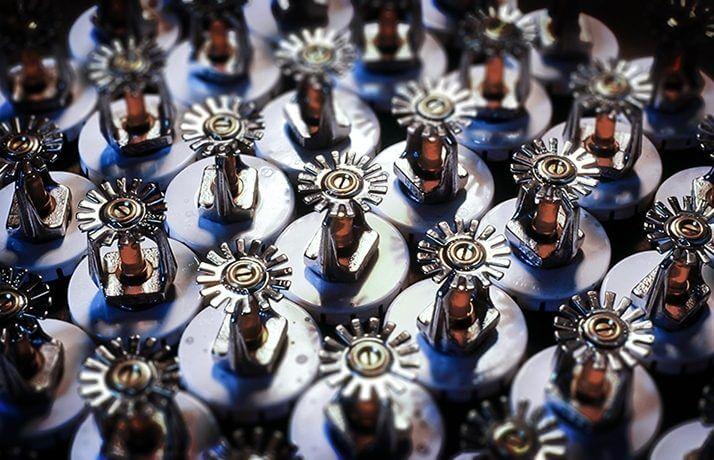

Rows of metal fire sprinkler heads with glass bulbs and circular escutcheons

A fire sprinkler layout shows where the sprinklers and pipes will go. Hydraulic calculations address a different question: can the water supply deliver the flow and pressure the proposed design needs? For building owners in British Columbia, resolving that question early helps establish a realistic scope for new construction, additions and tenant improvements.

The calculation is part of a coordinated design. Its value depends on the information behind it: the intended use of the space, the sprinkler arrangement, the pipe network and a water supply that represents the project site.

What do sprinkler hydraulic calculations evaluate?

Water loses pressure as it flows through piping, fittings and equipment. Elevation changes also affect the pressure available at the sprinklers. The engineer evaluates these effects together with the required sprinkler discharge and the applicable design criteria. A pipe size that works in one arrangement may need to change when the route, elevation or demand changes.

The U.S. Fire Administration’s water-based system plans-review manual explains the relationship between sprinkler flow, operating pressure and hydraulic losses. These principles explain why a drawing with a plausible-looking pipe layout still needs an appropriate engineering basis.

A pressure reading is only part of the picture

Static pressure describes the supply under the conditions when water is not being discharged for the test. Residual pressure describes what remains while a measured flow is being drawn. The combination helps characterize available supply; one pressure number does not describe how the supply behaves under demand.

Ask the design team which supply information it needs, where that information should come from and what conditions it represents. In Vancouver, the City’s sprinkler permit guidance identifies site-specific City water-supply information dated no more than one year before application. Other jurisdictions may use different procedures.

Compare the proposed demand with the available supply

The engineering review connects the sprinkler demand to the available supply through the actual proposed system. The result should make the design assumptions understandable to the project team. If the available supply does not support the arrangement, the next step is to assess the cause and feasible changes before committing to equipment or construction.

Keep that decision in the design programme. Allow time to obtain missing information, compare practical options and coordinate any changes affecting space, servicing or cost. A calculation completed after procurement can leave fewer choices for the owner.

Existing buildings need a reliable starting point

For a renovation, collect available sprinkler drawings, previous calculations and records of later alterations. Identify which documents represent the current installation and which describe an earlier configuration. A clear record of what is known helps the engineer plan the verification needed for the proposed work.

For example, a tenant may propose moving partitions while retaining an existing sprinkler connection. The useful project question is whether the revised arrangement and intended activities remain compatible with the system’s design basis. Counting the heads being moved does not answer that question by itself. Describe changes in use, storage and layout at the beginning of the engagement.

What should an owner provide?

The site address, municipality and a plain-language description of the proposed work.
Current floor plans, reflected ceiling plans and available sections showing relevant heights.
Available sprinkler records, with known discrepancies or later changes clearly identified.
Details of the intended activities and storage, including any changes from the existing tenancy.
Available water-supply information and the contact responsible for obtaining further records.
The design and construction schedule, including procurement decisions that depend on the findings.

Assign an owner to each missing item. A short information register is often more useful than sending a large collection of unlabelled drawings and expecting the engineer to infer which version applies.

Record the code basis and final design decisions

NFPA 13 addresses automatic sprinkler design and installation. The governing requirements for a particular project depend on the adopted code or bylaw and its referenced standards. Vancouver has its own building bylaw; other BC projects require confirmation of their applicable regulatory basis.

Ask for the calculation assumptions, corresponding drawing revision and unresolved decisions to be identified together. Preserve the final documents in the building’s records so a future alteration can start from a clearer understanding of the installed design.
